Residential Toilet Buyers Guide
Compact One-Piece RV-Compatible Toilets
Listed by “DEPTH” (Small to Large) measured from the wall to the front edge of the toilet.
IMPORTANT: To determine the “Rough-In” dimension of your toilet; use a tape measure and measure from the wall behind the toilet to the toilet mounting bolt center located at the toilet base. Also measure from the wall behind the toilet to the sink vanity or any other obstruction that resides in front of the toilet to ensure enough clearance when sizing/selecting a residential toilet.

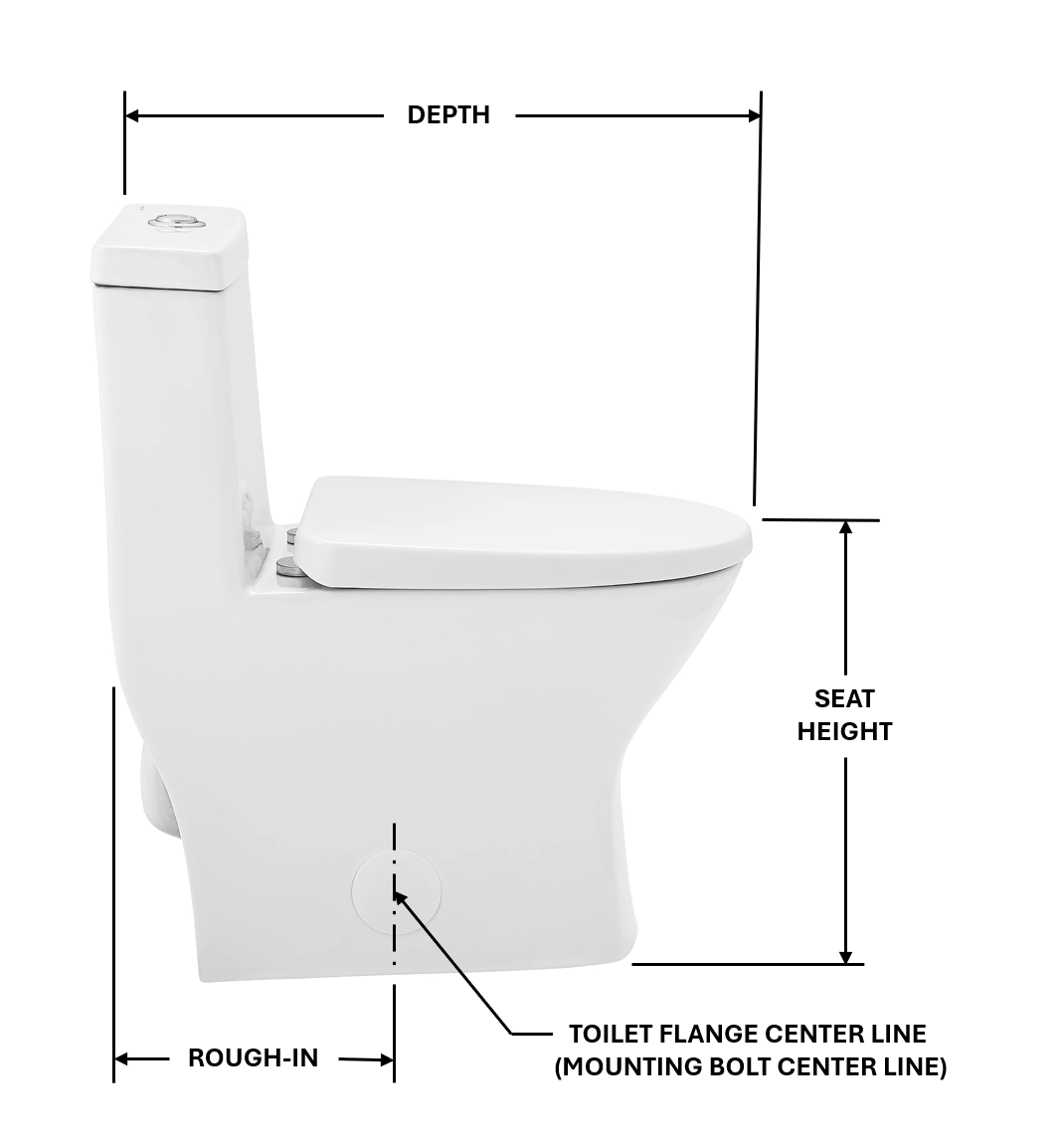

Key Dimensions Required For Toilet Selection
CAUTION: When installing a residential toilet it is important that you flush the toilet to empty the tank and then remove and store the tank lid in a safe place before travel. This caution does not apply to tankless toilet options.
WinZo – WZ5079S
23″ Depth x 10″ Rough-In
23″ Deep (Depth from Wall) x 16″ Seat Height x 10 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White or Black
WinZo – WZ5079
23″ Depth x 12″ Rough-In
23″ Deep (Depth from Wall) x 16″ Seat Height x 12 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White or Black
HOROW – HR-T0307W
23-5/8″ Depth x 12″ Rough-In
23-5/8″ Deep (Depth from Wall) x 16″ Seat Height x 12 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White
Swiss Madison – Sublime II
24″ Depth x 10″ Rough-In
24″ Deep (Depth from Wall) x 16″ Seat Height x 10 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White or Black
HOROW – T0338W-12
26-3/4″ Depth x 12″ Rough-In
26-3/4″ Deep (Depth from Wall) x 17-1/2″ ADA Seat Height x 12 Inch Rough-In
Elongated Seat Compact One Piece Toilet – Available in Multiple Colors & Bidet Option
HOROW – HR-T30
26-7/8″ Depth x 12″ Rough-In – With Bidet!
26-7/8″ Deep (Depth from Wall) x 17-5/16″ ADA Seat Height x 12 Inch Rough-In
Non-Electric Bidet Elongated Seat Tankless Toilet – Available in White
Required Pressure of Water Supply (PSI): 15 Min / 125 Max (Works with Low Pressure)
Casta Diva – CD-W10V
26-7/8″ Depth x 12″ Rough-In – With Bidet!
26-7/8″ Deep (Depth from Wall) x 17-1/2″ ADA Seat Height x 12 Inch Rough-In
Non-Electric Bidet Elongated Seat Tankless Toilet
Available in White with Grey, Silver or Gold Trim Plate
Required Pressure of Water Supply (PSI): 15 Min / 125 Max (Works with Low Pressure)

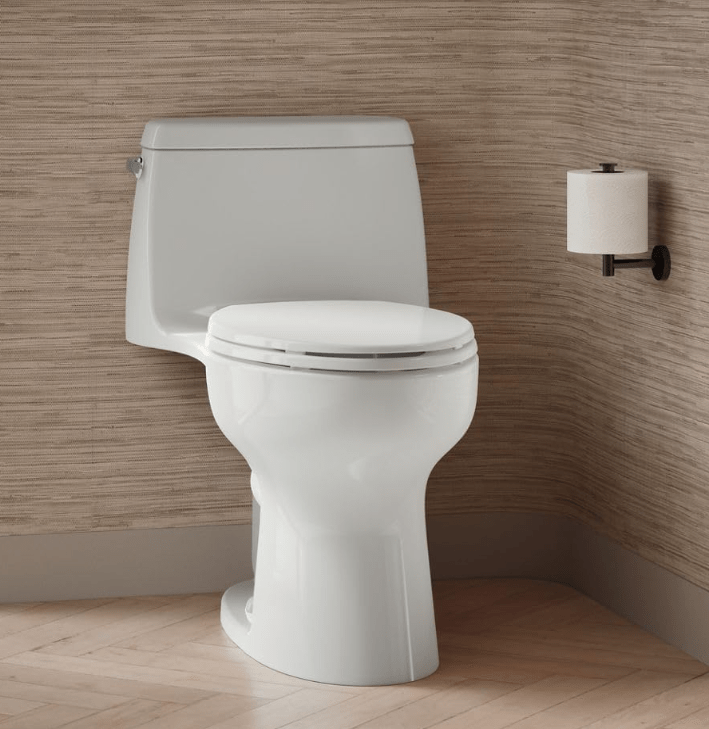

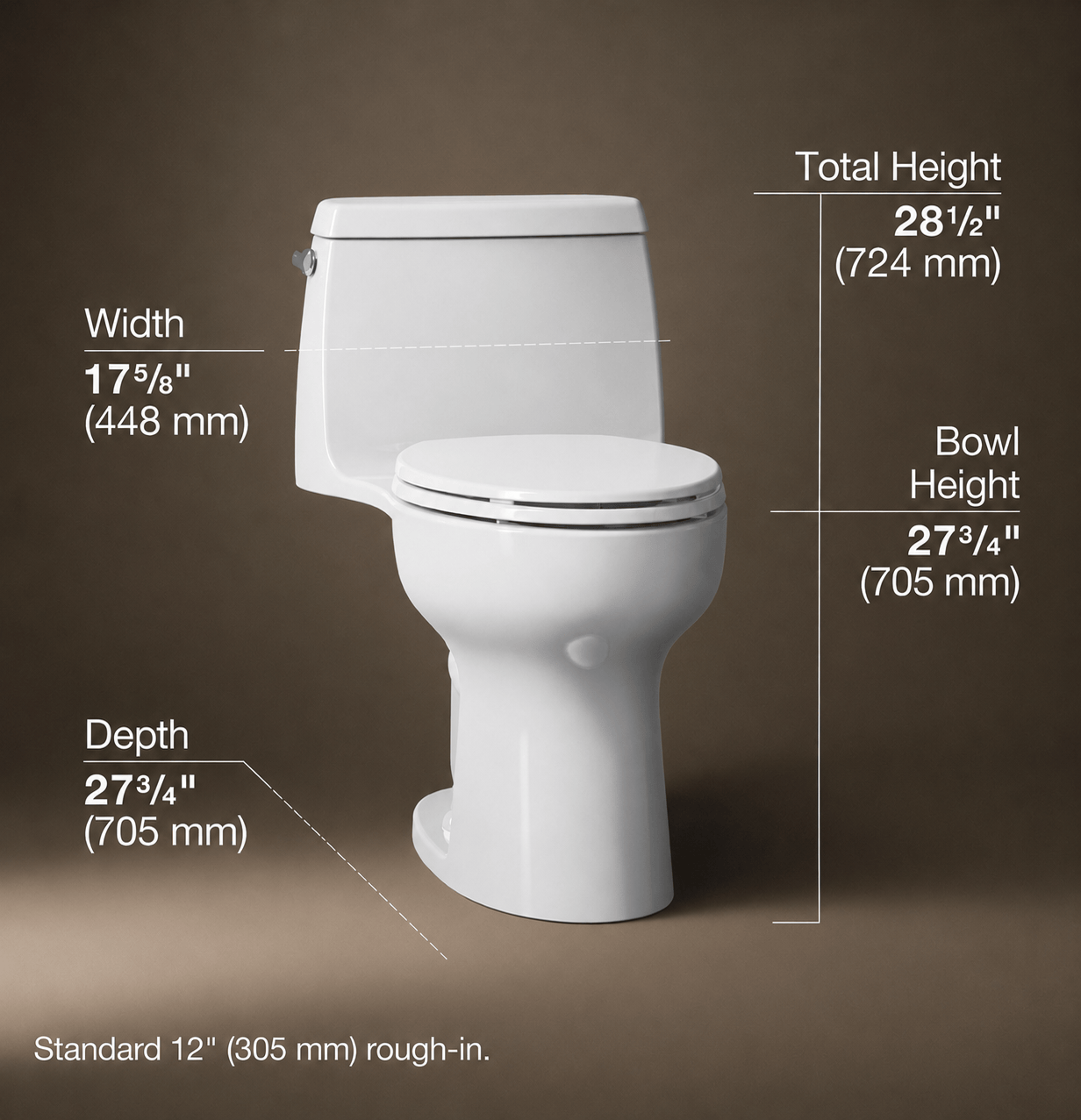

KOHLER – Santa Rosa
27-3/4″ Depth x 12″ Rough-In
27-3/4″ Deep (Depth from Wall) x 17″ ADA Seat Height x 12 Inch Rough-In

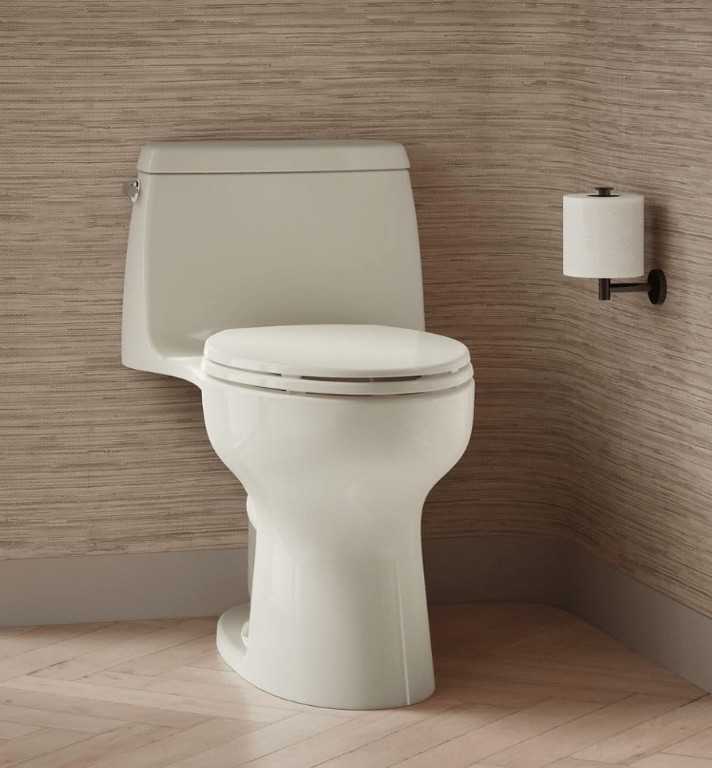

Elongated Seat Compact One Piece Toilet – Available in White, Biscuit & Black
Casta Diva – CD-T006
25-3/8″ Depth x 12″ Rough-In
25-3/8″ Deep (Depth from Wall) x 17-1/2″ ADA Seat Height x 12 Inch Rough-In
Elongated Seat Compact One Piece Toilet – Available in White
HOROW – T0338W-10
26-3/4″ Depth x 10″ Rough-In
26-3/4″ Deep (Depth from Wall) x 17-3/8″ ADA Seat Height x 10 Inch Rough-In
Elongated Seat Compact One Piece Toilet – Available in White or Black
Toilet Riser Kit
3-1/2″ Riser Base
Increases the toilet seat height for greater comfort
Swiss Madison – Plaisir II
26″ Depth x 12″ Rough-In
26″ Deep (Depth from Wall) x 16-1/2″ Seat Height x 12 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White
WinZo – WZ5079S
23″ Depth x 10″ Rough-In
23″ Deep (Depth from Wall) x 16″ Seat Height x 10 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White or Black
WinZo – WZ5079
23″ Depth x 12″ Rough-In
23″ Deep (Depth from Wall) x 16″ Seat Height x 12 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White or Black
HOROW – HR-T0307W
23-5/8″ Depth x 12″ Rough-In
23-5/8″ Deep (Depth from Wall) x 16″ Seat Height x 12 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White
Swiss Madison Sublime II
24″ Depth x 10″ Rough-In
24″ Deep (Depth from Wall) x 16″ Seat Height x 10 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White or Black
Swiss Madison – Plaisir II
26″ Depth x 12″ Rough-In
26″ Deep (Depth from Wall) x 16-1/2″ Seat Height x 12 Inch Rough-In
Round Seat Compact One Piece Toilet – Available in White
HOROW – T0338W-10
26-3/4″ Depth x 10″ Rough-In
26-3/4″ Deep (Depth from Wall) x 17-3/8″ ADA Seat Height x 10 Inch Rough-In
Elongated Seat Compact One Piece Toilet – Available in White or Black
HOROW – T0338W-12
26-3/4″ Depth x 12″ Rough-In
26-3/4″ Deep (Depth from Wall) x 17-3/8″ ADA Seat Height x 12 Inch Rough-In
Elongated Seat Compact One Piece Toilet – Available in Multiple Colors & Bidet Option
HOROW – HR-T30
26-7/8″ Depth x 12″ Rough-In – With Bidet!
26-7/8″ Deep (Depth from Wall) x 17-5/16″ ADA Seat Height x 12 Inch Rough-In
Non-Electric Bidet Elongated Seat Tankless Toilet – Available in White
Required Pressure of Water Supply (PSI): 15 Min / 125 Max (Works with Low Pressure)
Casta Diva – CD-W10V
26-7/8″ Depth x 12″ Rough-In – With Bidet!
26-7/8″ Deep (Depth from Wall) x 17-1/2″ ADA Seat Height x 12 Inch Rough-In
Non-Electric Bidet Elongated Seat Tankless Toilet
Available in White with Grey, Silver or Gold Trim Plate
Required Pressure of Water Supply (PSI): 15 Min / 125 Max (Works with Low Pressure)
KOHLER – Santa Rosa
27-3/4″ Depth x 12″ Rough-In
27-3/4″ Deep (Depth from Wall) x 17″ ADA Seat Height x 12 Inch Rough-In
Compact One Piece Toilet – Available in White, Biscuit & Black
Toilet Riser Kit
3-1/2″ Riser Base
Increases the toilet seat height for greater comfort
Casta Diva – CD-T006
25-3/8″ Depth x 12″ Rough-In
25-3/8″ Deep (Depth from Wall) x 17-1/2″ ADA Seat Height x 12 Inch Rough-In
Elongated Seat Compact One Piece Toilet – Available in White
